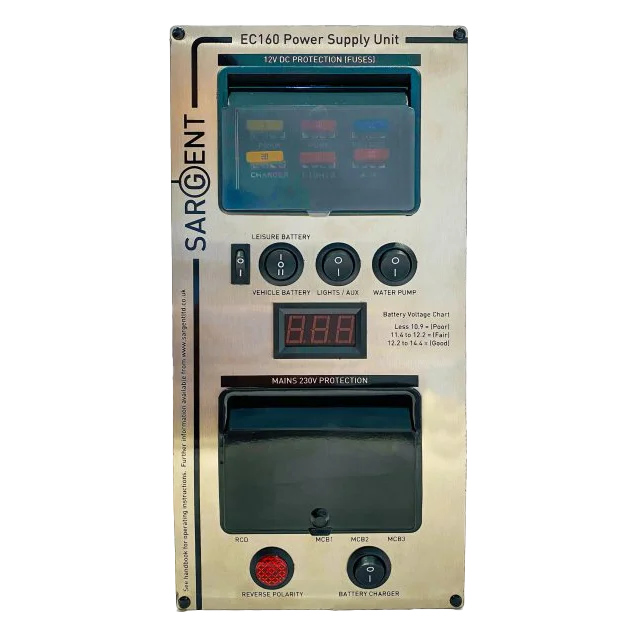

Sargent Silver EC160 Deluxe Vertical Power Supply Unit

This sargent ec160 power supply unit is the ideal unit for a self-build campervan which provides both 12v and 240v power supplies. it is easy to install and operate courtesy of sargent’s simple design.

*230v ac:

-16a input via wired 2m lead
-Rcd protected with reverse polarity indication
-Built in 150w 13.8v fixed voltage battery charger with on/off switch
-3 x 10a mcb outputs via quick fit connector blocks
*12v dc
-2 x 15a battery inputs via screw terminal block
-5 x outputs via screw terminal black
-Pump output via pump switch & 5a fuse
-Lights output via lights / aux switch & aux 10a fuse
-Permanent output via 5a fuse
-Fridge output va 15a fuse
-Built in split charge relay (configurable)
-Built in emc isolation relay (configurable)
-Digital voltmeter with on/off switch

-Dimensions: front panel: 300 x 150mm. panel cut out 285 x 132mm x depth 200mm
