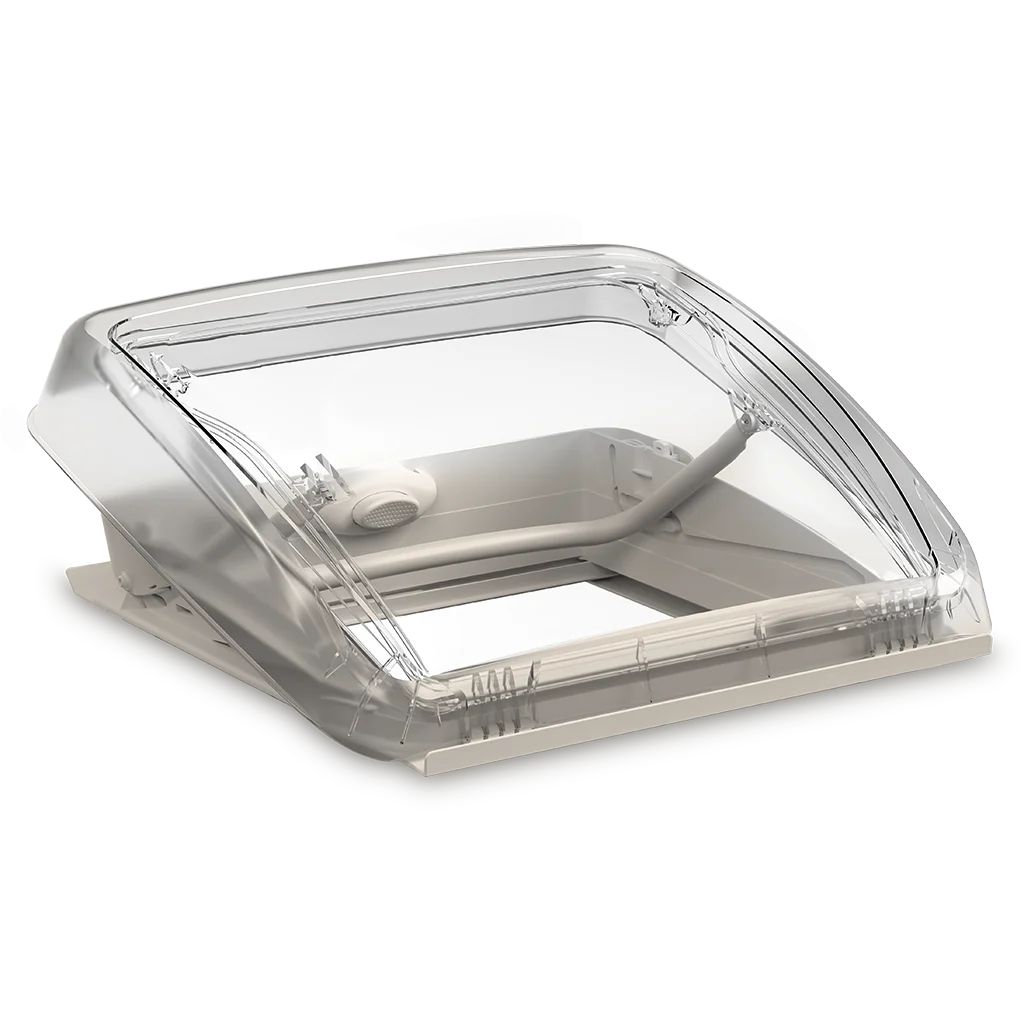

Dometic Mini Heki Style Forced Ventilation 43-60mm (400×400)

This handle-operated, double acrylic glazed mini heki style roof light for motorhomes and caravans fits neatly into a standard 400 x 400 mm aperture. an inner frame holds a darkening blind and fly screen (separately adjustable) for shade, privacy and freedom from insects! operated by a hand-lever, the dome can be opened to three different positions: fully open, half-open and bad-weather position.

Every vehicle instantly seems so much more inviting! despite their compact standard sizes, the mini hekis provide the optimum amount of light. both models feature a lightly tinted, aerodynamically formed glass dome. the mini heki style even features double glazing, and can be opened in three different positions (incl. poor weather position). the single glazed mini heki s can be opened to all sides using operating handles. the mini hekis are equipped with a single-pleated darkening screen and a flyscreen.

Opens to three positions
Dome with double acrylic glazing
Special shaped glass dome is aerodynamic
Handle-operated

Dimensions:

– dimensions product depth 520 mm
– dimensions product width 535 mm
– net weight 3.30 kg
– dimensions ordered width 400 mm
– dimensions ordered height 400 mm
– dimensions opening width 380 mm
– dimensions opening height 370 mm
– standard mount. material thickness 1 min 42 mm
– possible material thickness 1 min 25 mm
– possible material thickness 1 max 41 mm
– ventilation opening 80.00 cm2
– cut out height 400.00 mm
– cut out width 400.00 mm
