Propex LPG Underslung Tank Kit – Ducato/Boxer/Relay Through Body Filler

This Propex LPG Underslung Tank Kit is a complete, vehicle-specific solution for fitting a 25L refillable LPG tank to third-generation chassis models (2006-present) of the Peugeot Boxer, Citron Relay, and Fiat Ducato. It’s perfect for professional van converters and DIY builders who want a safe, CE-approved, and hassle-free LPG system-without the guesswork.

Designed to bolt straight into existing chassis mounting points (no drilling required), this kit includes everything from the fill point to the regulator, with a user-friendly internal gas control/display panel that lets you monitor and control gas levels from inside the van.

Whats Included?

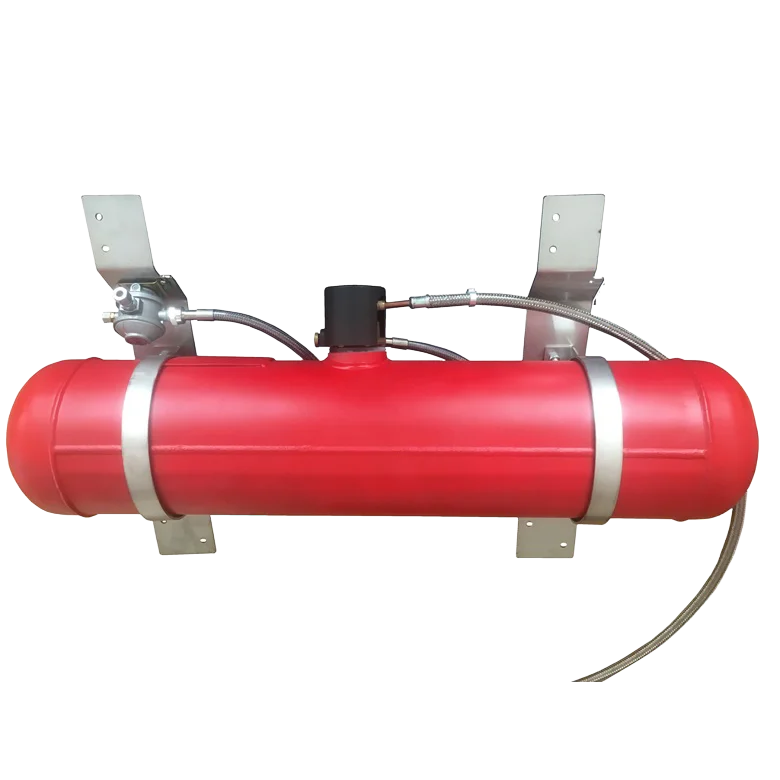

-25L LPG tank (20L usable at 80% fill = approx. 10kg LPG)
-Multivalve with solenoid and level sender
-Stainless steel crossmember mounting brackets
-UK bayonet filler housing (throughbody)
-3m highpressure fill hose (8mm)

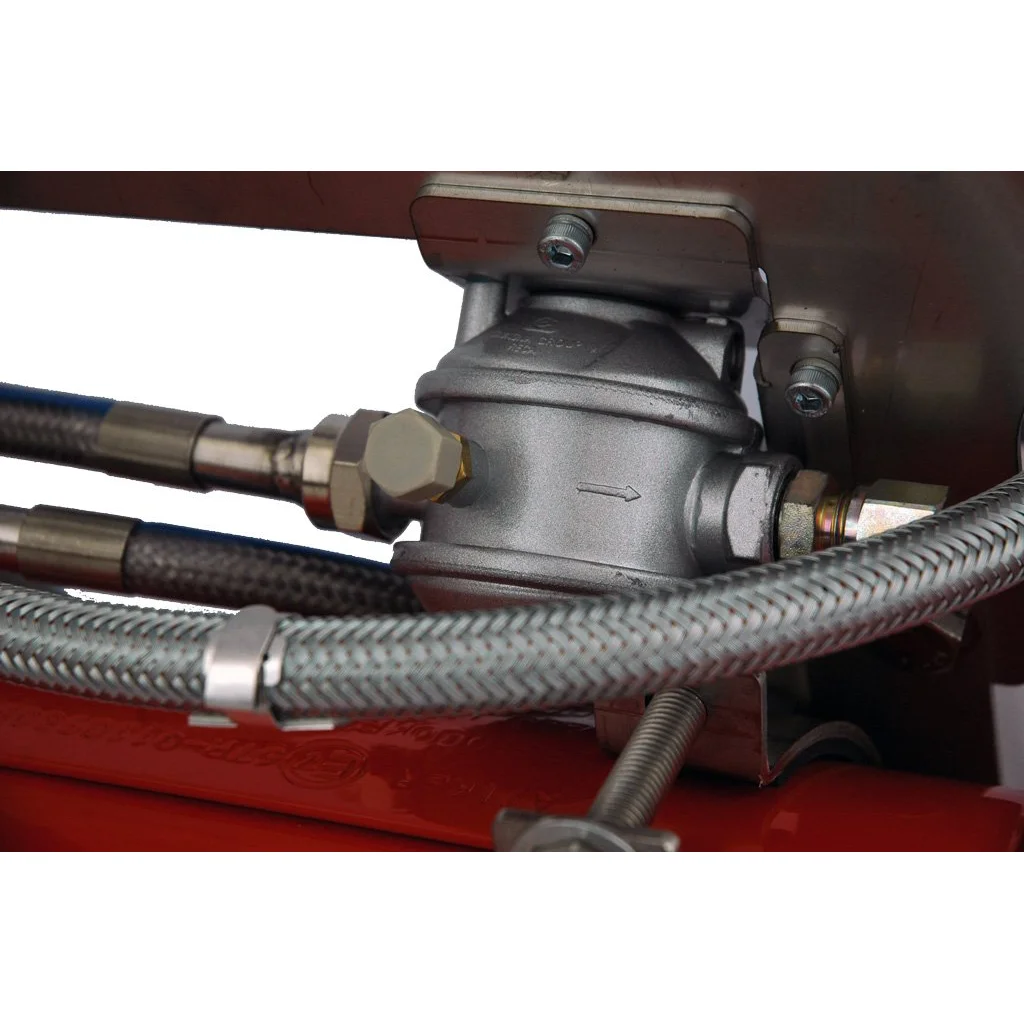

-Cavagna 28-30 mBar regulator with GOK test nipple
-0.75m pigtail hose

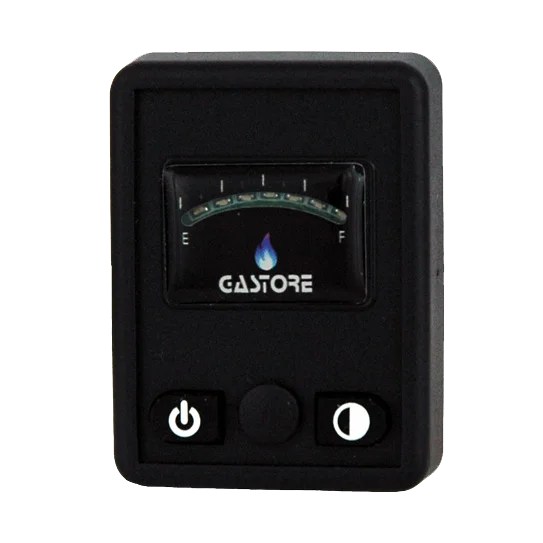

-Internal GASTORE CEapproved controller/display
-Double pole fused junction box
-5.5m solenoid cable & 5.5m level sender cable
-Full stainless steel fixing hardware
-Rivnuts, Pclips, and all necessary fittings
-Installation instructions and compliance certificates
-Tank birth certificate and log card
